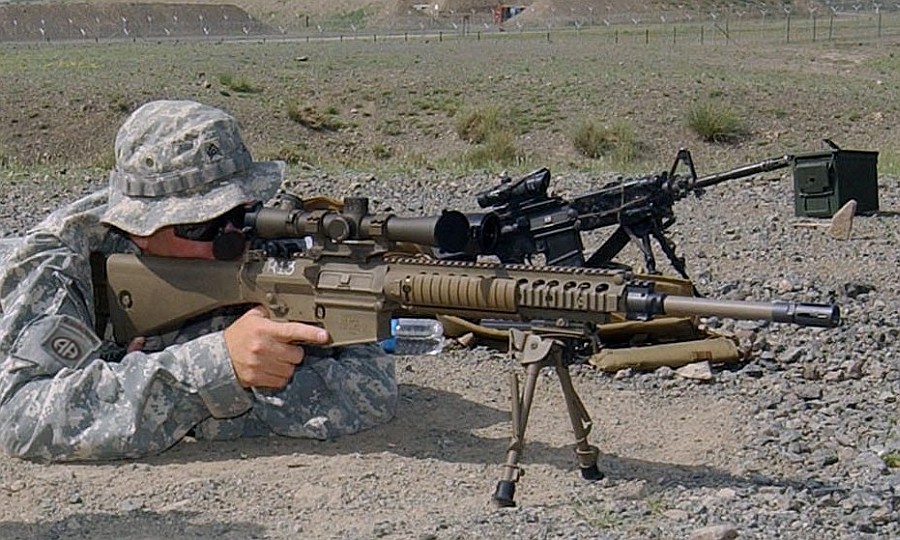

M110 Semi Automatic Sniper System (M110 SASS)

The M110 Semi Automatic Sniper System (M110 SASS) is an American semi-automatic sniper rifle/designated marksman rifle that is chambered for the 7.62×51mm NATO round.The rifle is similar to the SR-25/Mk 11 Mod 0, but differs significantly in buttstock and rail system design. The SR-25, Mk 11 Mod 0, and M110 are based loosely on the original AR-10 developed by Eugene Stoner but feature additional refinements instituted by KAC to maximize parts commonality with the AR-15 design, improve weapon reliability, and increase accuracy.

The main differences between the Mk 11 and M110 are improvements suggested by a user group meeting between NAVSPECWAR, USASOC and USA in 2007: The rail system used: the KAC Free Floated RAS on the Mk 11 is replaced by a URX modular rail system with integral folding front 600-meter back-up iron sight. The M110 buttstock: fixed, though the buttplate is adjustable for length of pull to match user preferences. Adjustment can be made without tools via a notched hand-tightened knob on the right-hand side of the stock.

This feature was added during the change from XM110 to M110. The fixed buttstock also features integral quick-detachable sling swivel sockets located on each side of the stock near the rear of the lower receiver. The addition of a flash hider to the barrel of the M110, which also necessitates a modified QD Suppressor unit similar to that on the Mk 11. The M110's use of KAC's one-piece 30 mm scope mount instead of two separate scope rings.

Cartridge 7.62×51mm NATO Action Gas-operated, rotating bolt Rate of fire Semi-automatic Muzzle velocity 783 m/s (2,570 ft/s) with 175 gr. M118LR Effective firing range 800 metres (875 yd) (point targets) Feed system 10 or 20-round detachable box magazine
compiled by XENOCIDE

GAU-8 Avenger :- The Brrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr................... gun

The General Electric GAU-8/A Avenger is a 30 mm hydraulically driven seven-barrel Gatling-type autocannon that is typically mounted in the United States Air Force's Fairchild Republic A-10 Thunderbolt II. Designed specifically for the anti-tank role, the Avenger delivers very powerful rounds at a high rate of fire. The GAU-8/A is also used in the Goalkeeper CIWS ship weapon system, which provides defense against short-range threats such as highly maneuverable missiles, aircraft and fast maneuvering surface vessels.

The entire GAU-8 assembly (correctly referred to as the A/A 49E-6 Gun System) represents about 16% of the A-10 aircraft's unladen weight. Because the gun plays a significant role in maintaining the A-10's balance and center of gravity, a jack must be installed beneath the tail of the plane whenever the gun is removed for inspection in order to prevent the aircraft from tipping rearwards.he GAU-8 itself weighs 620 pounds (280 kg), but the complete weapon, with feed system and drum, weighs 4,029 pounds (1,828 kg) with a maximum ammunition load. It measures 19 ft 5 1⁄2 in (5.931 m) from the muzzle to the rearmost point of the ammunition system, and the ammunition drum alone is 34.5 inches (88 cm) in diameter and 71.5 inches (1.82 m) long.

A-10 firing its GAU-8 avenger gun

Power for operating the gun is provided by twin hydraulic motors pressurized from two independent hydraulic systems. The magazine can hold 1,174 rounds, although 1,150 is the typical load-out. Muzzle velocity when firing Armor-Piercing Incendiary rounds is 1,013 m/s, almost the same as the substantially lighter M61 Vulcan's 20 mm round, giving the gun a muzzle energy of approximately 200 kilojoules.The Avenger's rate of fire was originally selectable, 2,100 rounds per minute (rpm) in the low setting, or 4,200 rpm in the high setting.

 Photo of a 30mm PGU-15/B target practice round, commonly used in the GAU-8 Avenger, next to a .30-06 Springfield FMJ round.

Later this was changed to a fixed rate of 3,900 rpm. In practice, the cannon is limited to one and two-second bursts to avoid overheating and conserve ammunition; barrel life is also a factor, since the USAF has specified a minimum life of at least 20,000 rounds for each set of barrels
-compiled by XENOCIDE

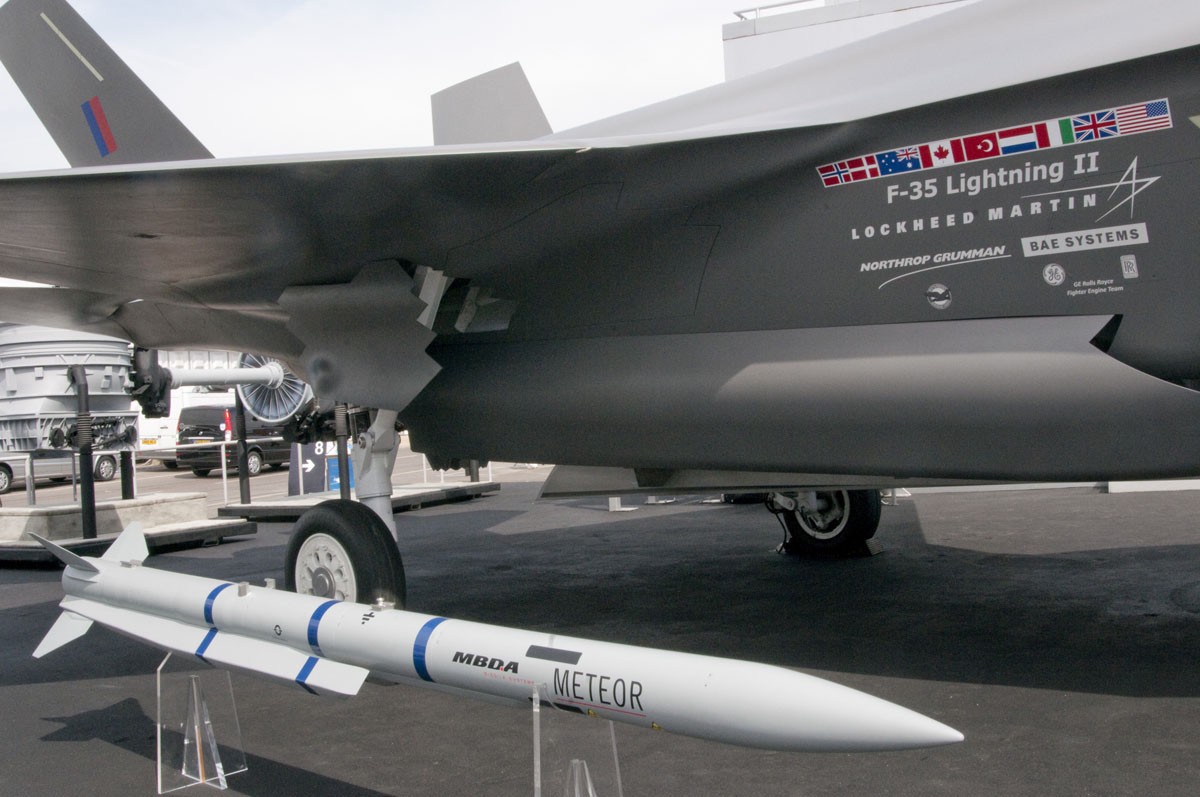

Meteor missile- extreme long range air to air missle

Meteor is an active radar guided beyond-visual-range air-to-air missile (BVRAAM) being developed by MBDA. Meteor will offer a multi-shot capability against long range manoeuvring targets in a heavy electronic countermeasures (ECM) environment with range in excess of 100 kilometres (62 mi). Meteor is the next generation of Beyond Visual Range Air-to-Air Missile (BVRAAM) system designed to revolutionise air-to-air combat in the 21st Century.

Guided by an advanced active radar seeker, Meteor provides all weather capability to engage a wide variety of targets from agile fast jets to small Unmanned Aerial Vehicles and cruise missiles. It is designed to meet the most stringent of requirements and is capable of operating in the most severe of clutter and countermeasure environments. The weapon is also equipped with data link communication. Aimed at meeting the needs of a network centric environment, Meteor can be operated using third party data, enabling the Meteor user – the pilot – to have the most flexible weapon system.Meteor’s stunning performance is achieved through its unique ramjet propulsion system – solid fuel, variable flow, ducted rocket. This ‘ramjet’ motor provides the missile with thrust all the way to target intercept, providing the largest No-Escape Zone of any air-to-air missile. To ensure total target destruction, the missile is equipped with both impact and proximity fuses and a fragmentation warhead that detonates on impact or at the optimum point of intercept to maximise lethality.

The missile trajectory is controlled aerodynamically using four rear-mounted fins. Meteor's control principles are intended to allow high turn rates while maintaining intake and propulsion performance.A single fighter, equipped with an operational load of BVRAAM missiles, has the potential to destroy even the most maneuvrable of fighters well before they reach combat range, and simultaneously engage bombers at long range. Targets are prioritised prior to launch, and the missiles are fired towards the predicted interception points. Meanwhile target information can be updated, via the data-link, throughout the initial flight - either from the launch aircraft or from a third party such as AWACs. Tactical information on the missile can also be received by the controlling aircraft. At the appropriate time, BVRAAM's active radar seeker autonomously searches for and locks onto the target.

The missile is fully autonomous, making its own decisions to home in on the target, despite any evasive manoeuvres, or decoys or sophisticated electronic countermeasures. Meteor is a new concept in air to air weapons, employing advanced air breathing motor technology and state of the art electronics to provide optimum performance against increasingly complex threats. Conventional rocket motor powered missiles rely upon an initial boost phase to achieve the high speed required followed by a 'coast' phase to intercept the target. Latest generation, highly manoeuvrable aircraft, are able to out run conventional missiles at the extremes of their range. The air breathing motor proposed for Meteor provides sustained power, following the initial boost, to chase and destroy the target. The missile's computer and the seeker, which provides the missile's ability to search, locate and lock on to a target, will build upon existing French technology, used in the Mica missile, to provide robust performance in the presence of electronic countermeasures.
-compiled by XENOCIDE

AGM-114 Hellfire

The AGM-114 Hellfire is an air-to-surface missile (ASM) first developed for anti-armor use, but later models were developed for precision strikes against other target types, and have been used in a number of targeted killings of high-profile individuals. It was originally developed under the name Helicopter Launched, Fire and Forget Missile, which led to the colloquial name 'Hellfire' ultimately becoming the missile's formal name

.It has multi-mission, multi-target precision-strike ability, and can be launched from multiple air, sea, and ground platforms, including the Predator drone.

The Hellfire missile is the primary 100-pound (45 kg) class air-to-ground precision weapon for the armed forces of the United States and many other nations.The Hellfire can be deployed from rotary- and fixed-wing aircraft, waterborne vessels and land-based systems against a variety of targets.

Most variants are laser guided with one, AGM-114L "Longbow Hellfire", being radar guided.Laser guidance can be provided either from the launcher, such as the nose-mounted opto-electronics of the AH-64 Apache attack helicopter, other airborne target designators or from ground-based observers, the latter two options allowing the launcher to break line of sight with the target and seek cover. Each Hellfire weighs 47 kilograms (104 lb), including the 9 kilograms (20 lb) warhead, and has a range of 8,000 metres (26,000 ft).

Target practice of hellfire on an old building

The AGM-114R "Romeo" Hellfire II entered service in late 2012. It uses a semi-active laser homing guidance system and an integrated blast fragmentation sleeve warhead to engage targets that previously needed multiple Hellfire variants. It will replace AGM-114K, M, N, and P variants in U.S. service. Its Operational range is 546 yd – 5 miles (500 m – 8 km) and it can travel with a Speed of Mach 1.3 (995 mph; 450 m/s; 1591 km/h)
-compiled by XENOCIDE

C-5 Galaxy (strategic airlifter)

The Lockheed C-5 Galaxy is a large military transport aircraft originally designed and built by Lockheed, and now maintained and upgraded by its successor, Lockheed Martin. It provides the United States Air Force (USAF) with a heavy intercontinental-range strategic airlift capability, one that can carry outsize and oversize loads, including all air-certifiable cargo. The Galaxy has many similarities to its smaller Lockheed C-141 Starlifter predecessor, and the later Boeing C-17 Globemaster III. The C-5 is among the largest military aircraft in the world.

The C-5 Galaxy's development was complicated, including significant cost overruns, and Lockheed suffered significant financial difficulties. Shortly after entering service, cracks in the wings of many aircraft were discovered and the C-5 fleet was restricted in capability until corrective work was completed. The C-5M Super Galaxy is an upgraded version with new engines and modernized avionics designed to extend its service life beyond 2040.

The C-5 is a large high-wing cargo aircraft with a distinctive high T-tail fin (vertical) stabilizer, and with four TF39 turbofan engines mounted on pylons beneath wings that are swept 25 degrees. Similar in layout to its smaller predecessor, the C-141 Starlifter, the C-5 has 12 internal wing tanks and is equipped for aerial refueling. Above the plane-length cargo deck, it provides an upper deck for flight operations and for seating 75 passengers including the embarked loadmaster crew, all who face to the rear of the aircraft during flight.

Full-open(able) bay doors at both nose and tail enable "drive-through" loading and unloading of cargo. The cargo hold of the C-5 is one foot longer than the entire length of the first powered flight by the Wright Brothers at Kitty Hawk. For its voracious consumption of fuel and its maintenance and reliability issues the Galaxy's aircrews have nicknamed it FRED, for: Fucking Ridiculous, Economic/Environmental Disaste
The C-5 features a Malfunction Detection Analysis and Recording (MADAR) system to identify errors throughout the aircraft. C-5 Galaxy in-flight shortly after taking off

The cargo compartment is 121 ft (37 m) long, 13.5 ft (4.1 m) high, and 19 ft (5.8 m) wide, or just over 31,000 cu ft (880 m3). It can accommodate up to 36 463L master pallets or a mix of palletized cargo and vehicles. The nose and aft cargo-bay doors open the full width and height of the cargo bay to maximize efficient loading of oversized equipment. Full width ramps enable loading double rows of vehicles from either end of the cargo hold. The Galaxy C-5 is capable of moving nearly every type of military combat equipment, including such bulky items as the Army armored vehicle launched bridge (AVLB), at 74 short tons (67 t) , from the United States to any location on the globe; and of accommodating up to six Boeing AH-64 Apache helicopters or five Bradley Fighting Vehicles at one time
It has a range of Range: 2,400 nmi (2,760 mi, 4,440 km) with a 263,200 lb (119,400 kg) payload compiled by XENOCIDE

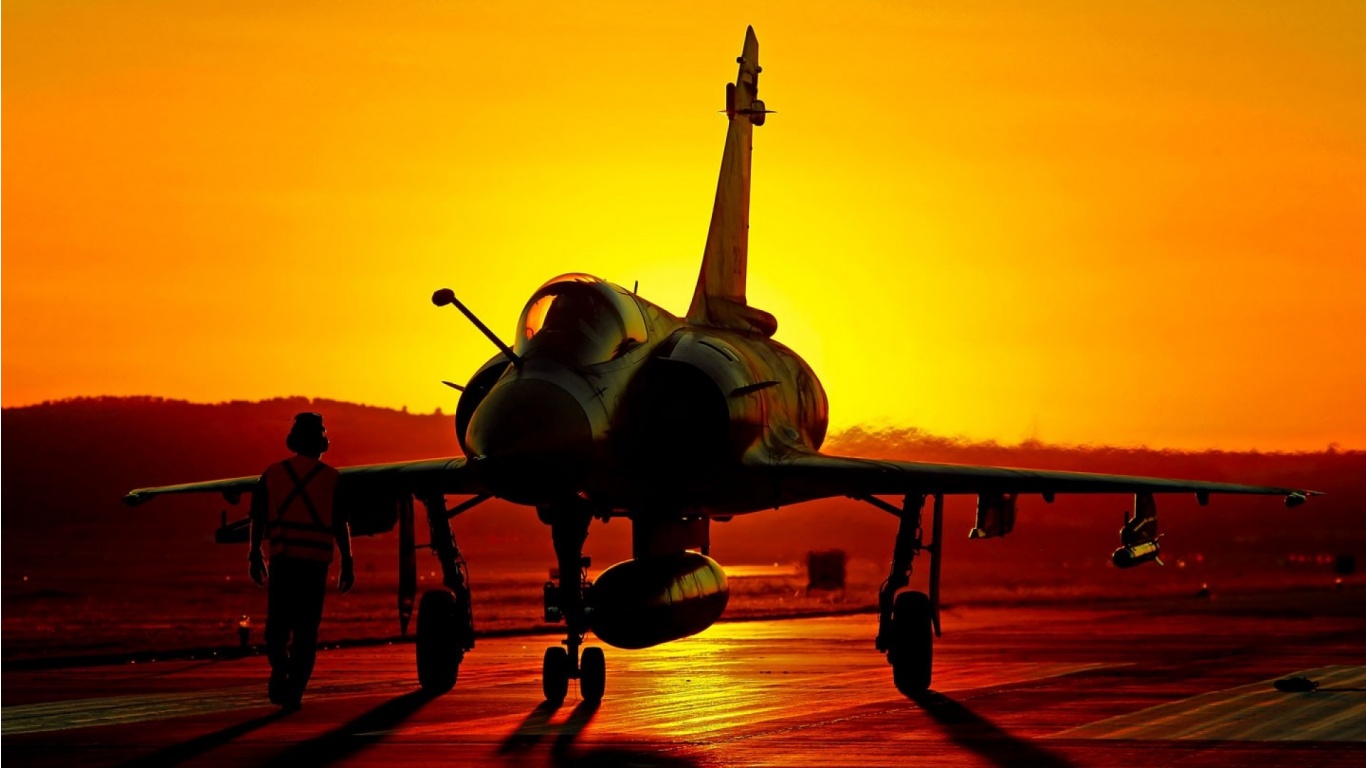

Mirage 2000(Dassault )

The Dassault Mirage 2000 is a French multirole, single-engine fourth-generation jet fighter manufactured by Dassault Aviation. It was designed in the late 1970s as a lightweight fighter based on the Mirage III for the French Air Force (Armée de l'Air). The Mirage 2000 evolved into a multirole aircraft with several variants developed, with sales to a number of nations. The variants include the Mirage 2000N and 2000D strike variants, the improved Mirage 2000-5 and several export variants.Over 600 aircraft were built and it has been in service with nine nations

The Mirage 2000 features a low-set thin delta wing with cambered section, 58 degrees leading-edge sweep and moderately blended root; area-ruled fuselage. The flight surfaces on the wings are composed of four elevons and four leading edge slats. Its neutral point is in front of its centre of gravity, giving the fighter relaxed stability to enhance maneuverability.

It incorporates negative stability and fly-by-wire controls with four analog computers. An airbrake is fitted above and below each wing in an arrangement very similar to that of the Mirage III. A noticeably taller tailfin allows the pilot to retain control at higher angles of attack, assisted by the small strakes mounted along each air intake.

The Mirage 2000 is equipped with built-in twin DEFA 554 autocannon (now GIAT 30–550 F4) 30 mm revolver-type cannons with 125 rounds each. The cannons have selectable fire rates of 1,200 or 1,800 rate of fire rounds per minute. Each round weighs 275 grams (9.7 oz) and has a muzzle velocity of around 800 metres per second (2,600 ft/s). The Mirage 2000 can carry up to 6.3 tonnes (14,000 lb) (or 7 tonnes for −9 version) of stores on nine pylons, with two pylons on each wing and five under the fuselage. External stores can include Matra Super 530 medium-range semi-active radar-guided air-to-air missile on the inboard wing pylons and underbelly, and Matra Magic short-range infrared-seeking AAM on the outboard wing pylons. Other short-range missiles such as the AIM-9J/L/P are compatible and are often used on Mirages which have been exported, because Magic itself was meant as 'Sidewinder compatible'. The Mirage 2000C and later versions can carry the lighter, more advanced MBDA MICA instead of the Super 530D

India has assigned a nuclear strike role to its Mirage 2000 squadrons in service with the IAF since 1985. In 1999 when the Kargil conflict broke out, the Mirage 2000 performed remarkably well during the whole conflict in the high Himalayas, even though the Mirages supplied to India had limited air interdiction capability and had to be heavily modified to drop laser-guided bombs as well as conventional unguided bombs. Two Mirage squadrons flew a total of 515 sorties, and in 240 strike missions dropped 55,000 kg (121,000 lb) of ordnance. Easy maintenance and a very high sortie rate made the Mirage 2000 one of the most efficient fighters of the IAF in the conflict. There are reports that the IAF qualified Soviet-designed missiles with the Mirage 2000, such as the R-27 (NATO AA-10 Alamo) AAM.

compiled by XENOCIDE

SA80 assault rifle

With the exception of the L98A1, the SA80 system is a selective fire gas-operated design that uses ignited powder gases bled through a port in the barrel to provide the weapon's automation. The rifle uses a short-stroke gas piston system located above the barrel, which is fed gas through a three-position adjustable gas regulator. The first gas setting is used for normal operation, the second is for use in difficult environmental conditions, while the third setting prevents any gas from reaching the piston and is used to launch rifle grenades.

The weapon uses a rotating cylindrical bolt that contains seven radially mounted locking splines, an extractor and casing ejector. The bolt's rotation is controlled by a cam stud that slides inside a helical camming guide machined into the bolt carrier.
The L85 is supplied with a sling, blank-firing adaptor, cleaning kit and a blade-type bayonet, which coupled with the sheath can double as a wire cutter (the sheath contains a small saw and sharpening stone).

The rifle can be adapted to use .22 Long Rifle training ammunition with a special conversion kit. The Small Arms Weapons Effects Simulator can be used on the L85 when in training with blank ammunition. The rifle variant also accommodates a 40 mm under-barrel grenade launcher such as Heckler & Koch AG-36 40 mm grenade launcher variants
The L85 rifle variant of the SA80 family has been the standard issue service rifle of the British Armed Forces since 1987, replacing the L1A1 variant of the FN FAL.


compiled by XENOCIDE

Tupolev Tu-16

The Tupolev Tu-16 (NATO reporting name: Badger) was a twin-engined jet strategic bomber used by the Soviet Union. It has flown for more than 40 years, and the Chinese licence-built Xian H-6 remains in service with the People's Liberation Army Air Force.Although the Tu-16 began as a high-altitude, free-fall bomber, in the mid-1950s it was equipped to carry early Soviet cruise missiles.

The Tu-16KS-1 (Badger-B) version could carry AS-1 missiles over a combat radius of 1,800 km (1,125 mi). These very large weapons were aerodynamically similar to the Mikoyan-Gurevich MiG-15 fighter, fitted with either a nuclear or conventional warhead, had a range of about 140 km (90 mi).

They were intended for use primarily against US Navy aircraft carriers and other large surface ships. Subsequent Tu-16s were converted to carry later, more advanced missiles, while their designations changed several times.

Egyptian Tu-16s. A versatile design, the Tu-16 was built in numerous specialized variants for reconnaissance, maritime surveillance, electronic intelligence gathering (ELINT), and electronic warfare (ECM).Among the main production variants of the Badger were the Tu-16 and Tu-16A bombers; Tu-16KS and Tu-16K-10 missile carriers; Tu-16SPS, "Elka", and Tu-16Ye ECM aircraft; Tu-16R reconnaissance aircraft; and Tu-16T torpedo bomber; others were produced from conversions. Individual aircraft could be modified several times, with designations changed, especially concerning missile-carrying aircraft.

Its Empty weight was 37,200 kg (82,012 lb) and Gross weight: 76,000 kg (167,551 lb) and an operating Range of 7,200 km
compiled by XENOCIDE

Scorpion EVO 3

The Scorpion EVO 3 is a 9mm submachine gun manufactured by Česká zbrojovka Uherský Brod in either select-fire A1 or semi-automatic S1 variants. The Skorpion Evo 3 evolved from a Slovakian prototype submachine gun called the Laugo.

Chambered in 9×19mm Parabellum, the Scorpion EVO 3 is a light weight, compact submachine gun designed to be easily maneuvered in constrained spaces. The A1 variant features a select fire switch, giving the operator the choice of 'safe,' semi-automatic, three-round burst, or fully automatic fire, while the S1's switch only features 'safe' and semi-automatic fire.

The standard version comes equipped with a folding, adjustable and fully removable stock for easy transport.

The hand guard is lined with multiple Picatinny Rails for the addition of attachments such as grips, sights, flashlights and lasers.
It has a Rate of fire of 1150 rounds/min
-compiled by XENOCIDE

Advanced Gun System

The Advanced Gun System is a naval gun system developed and produced by BAE Systems Armaments Systems (formerly United Defense) for the Zumwalt-class destroyer of the United States Navy. The first magazine was delivered to the U.S. Navy on 25 May 2010 Originally designed for mounting as a vertical gun, this 155 millimetres (6.1 in) caliber gun has since been designed and produced for mounting within a more conventional turret arrangement. The AGS is designed to offer a weapon system capable of delivering precision munitions at a high rate of fire and at over-the-horizon ranges. As a vertical gun system it would only have been capable of firing guided munitions; the turret mounting will allow the use of unguided munitions as well. The development of new ammunition for the AGS under the name Long Range Land Attack Projectile (LRLAP) is another major advance offered by the AGS program; it features separate projectile and propellant portions.

The munitions are to be highly accurate, with a circular error probable (CEP) of 50 m (160 ft) or less. Lockheed Martin's flight test of the munition in July 2005 had a reported a flight distance of 59 nautical miles (109 km; 68 mi).The AGS uses the same 155 mm caliber as most American field artillery forces, although it is unable to fire the same ammunition. Instead, a new range of ammunition is under development for this weapon. The gun barrel is 62 calibers long, and is able to fire the entire magazine (300+ rounds) with an average rate of fire of ten rounds per minute using a water cooled barrel. The AGS is to be mounted in a turret specifically designed for the Zumwalt class destroyer with fully automated ammunition supply and operation. The turret itself is designed to be stealthy, allowing for the entire length of the barrel to be enclosed within the turret housing when not firing. A primary advantage of the AGS over the existing Mark 45 5" gun which equips most major surface combatants of the US Navy is its increased capability for supporting ground forces and striking land targets. With a 10 round per minute capacity, it offers the ability to deliver firepower close to that of a battery of six 155 mm howitzers. This initial strike fire power is possible by using a multiple round simultaneous impact (MRSI) firing tactic and does not equal the sustained fire power.

This will increase the utility of vessels equipped with the weapon, especially in areas in which the US Navy exercises absolute sea supremacy. The development of new ammunition for the AGS under the name Long Range Land Attack Projectile (LRLAP) is one of the major advances offered by the AGS program. The munitions are to be highly accurate, with a circular error probable (CEP) of 50 m (160 ft) or less. Lockheed Martin conducted a flight test of the munition in July 2005, reporting a flight distance of 59 nautical miles (109 km; 68 mi). The LRLAP ammunition features separate projectile and propellant portions. Total weight is 225 pounds (102 kg), including a bursting charge of 24 lb (11 kg). The maximum length of the combined munition is 88 in (220 cm), amounting to about 14 calibers.
compiled by XENOCIDE

Guardium -unmanned ground vehicle (UGV)

Guardium, developed by G-NIUS, is an Israeli unmanned ground vehicle (UGV) used to combat and guard against invaders along Gaza's border. It started off as a joint program between Israel Aerospace Industries and Elbit Industries and is now being used by Israeli forces.It can be used in either tele-operated or autonomous mode. Both modes do not demand human interaction for the vehicle to work; thus, giving the operator full audio and visual of the vehicle's surroundings at all times. Both modes of operation make it possible for the Israeli soldiers to fight off any attacker without actually having to risk their lives.

When working in groups the vehicles are able to work together and cooperate within the network. The more unmanned ground vehicles out patrolling the area the less human resources needed while also guaranteeing a highly efficient deterrence whenever it is around.Guardium is equipped all around with sufficient amount of armor to protect itself in light fire attacks and against multiple enemies. The vehicle is 2.95 meters long, 1.8 meters wide and 2.2 meters high.

It is considered to be a medium-sized combat vehicle, about the size of a Jeep J8; it weighs 1.4 tons and can go up to 80 km/h for up to several days depending on the amount of usage. The vehicle is equipped with: infrared cameras, radars, high-sensitivity microphones, visible sensors, and hostile fire indicators. Its equipment was built for unpredicted attacks, but its main purpose is to keep surveillance.

Since attacks can occur the vehicles contain both lethal and non-lethal weapons for its protection.It is quite easy to operate with its stationary, mobile, and portable operational versions. It can be remotely controlled by the mobile command station where the computers have built in maps that lead the Guardium along the Gaza border. It can also be pre-programmed to drive itself along the routes given to it.

With its powerful sensors it can detect and avoid unpredicted obstacles along with its infrared camera that helps spot any invaders in the dark. When it goes off road the cameras help it travel in any kind of terrain and weather
compiled by XENOCIDE

F117 nighthawk-the first stealth aircraft

The Lockheed F-117 Nighthawk is a single-seat, twin-engine stealth attack aircraft that was developed by Lockheed's secretive Skunk Works division and operated by the United States Air Force (USAF). The F-117 was based on the Have Blue technology demonstrator, and was the first operational aircraft to be designed around stealth technology. The maiden flight of the Nighthawk took place in 1981 and the aircraft achieved initial operating capability status in 1983. The Nighthawk was shrouded in secrecy until it was revealed in 1988

The F-117's unusual design surprised and puzzled experienced pilots; a Royal Air Force pilot who flew it as an exchange officer while still secret stated that when he first saw a photograph of the F-117, he "promptly giggled and thought to myself 'this clearly can't fly'".Early stealth aircraft were designed with a focus on minimal radar cross-section (RCS) rather than aerodynamic performance. Highly-stealth aircraft like the F-117 Nighthawk are aerodynamically unstable in all three Aircraft principal axes and require constant flight corrections from a fly-by-wire (FBW) flight system to maintain controlled flight.It is shaped to deflect radar signals and is about the size of an F-15 Eagle. The single-seat Nighthawk is powered by two non-afterburning General Electric F404 turbofan engines. It is air refuelable and features a V-tail.

The F-117 has a Radar cross-section of about 0.001 m2 (0.0108 sq ft). Among the penalties for stealth are lower engine thrust, due to losses in the inlet and outlet, a very low wing aspect ratio, and a high sweep angle (50°) needed to deflect incoming radar waves to the sides.With these design considerations and no afterburner, the F-117 is limited to subsonic speeds. The F-117A carries no radar, which lowers emissions and cross-section, and whether it carries any radar detection equipment is classified.

The F-117A's faceted shape (made from 2-dimensional flat surfaces) resulted from the limitations of the 1970s-era computer technology used to calculate its radar cross-section. Later supercomputers made it possible for subsequent planes like the B-2 bomber to use curved surfaces while staying stealthy, through the use of far more computational resources to do the additional calculations needed.An exhaust plume contributes a significant infrared signature. The F-117 reduces IR signature with a non-circular tail pipe (a slit shape) to minimize the exhaust cross-sectional volume and maximize the mixing of hot exhaust with cool ambient air. The F-117 lacks afterburners, because the hot exhaust would increase the infrared signature, and breaking the sound barrier would produce an obvious sonic boom, as well as surface heating of the aircraft skin which also increased the infrared footprint.

As a result, its performance in air combat maneuvering required in a dogfight would never match that of a dedicated fighter aircraft. This was unimportant in the case of this aircraft since it was designed to be a bomber. Passive (multistatic) radar, bistatic radar and especially multistatic radar systems detect some stealth aircraft better than conventional monostatic radars, since first-generation stealth technology (such as the F-117) reflects energy away from the transmitter's line of sight, effectively increasing the radar cross section (RCS) in other directions, which the passive radars monitor.
compiled by XENOCIDE
